80 Watts Triac PWM Dimmer For 110v LED Strip Light And Outdoor Landscape Lighting

Name: 80 Watts Triac PWM Dimmer For 110v LED Strip Light And Outdoor Landscape Lighting
Brand: KSPOWER
Price: 25.50 USD

Wholesale 80 Watts Triac PWM Dimmer For 110v LED Strip Light And Outdoor Landscape Lighting from china suppliers

Place of Origin : Guangdong, China

Brand Name : KSPOWER

Certification : UL/cUL Class2 CE FCC ROHS GS ENEC Cert.

MOQ : 5 pieces

Price : $25.50/pieces 5-499 pieces

Warranty(Year) : 5-Year

Color : Black, Silver

Current : 1.67A-6.67A

Lighting solutions service : Lighting and circuitry design

Input Voltage(V) : AC100-277V

Product Name : 80watts landscape lighting transformers

Dimming type : 0-10V, 1-10V, 10V PWM, Resistance dimming(4 in 1)

Efficiency : ≥ 88%

Output : 12V/24V/36V/48V

Application : Outdoor Landscape Lighintg

Material : Aluminum Case

Warranty : 5 Years

IP Grade : IP65, IP67

Protections : OCP, OVP, SCP, OTP

Contact Now

80 Watts Triac PWM Dimmer For 110v LED Strip Light And Outdoor Landscape Lighting

Products Description

24v 36v 48v 80watts dimmer12v transformer from 110v outdoor class2 led driver led strip light landscape lighting transformers 12 12.0 24 24.0 36 36.0 48 48.0 V Vdc Volt Volts 12.0V 24.0V 36.0V 48.0V 12volts 24volts 36volts 48volts 12vdc 24vdc 36vdc 48vdc 80 W Watt Watts 80Watt 80Watts

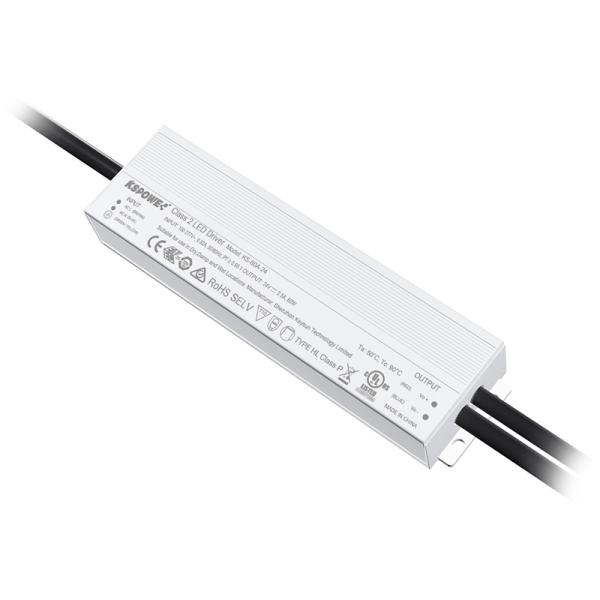

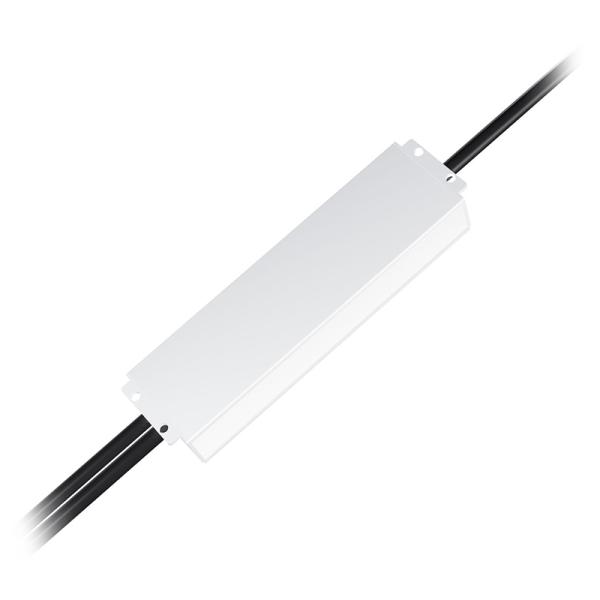

KSHO-80W is a versatile 80W 4-in-1 universal dimming driver that accepts 100-277VAC input voltage and provides 12V 24V 36V 48V constant voltage output. KSHO-80W delivers flicker free dimming to 0% on all dinning systems including 0-10V, 1-10V, PWM, Resistance, MLV, ELV and Incandescent. The high efficiency of the driver and sophisticated overload protection enables the electronics to run cooler and significantly improve reliability while extending product life.

The compact metal case is dry/damp location listed and IP67 rated, making it suitable for a wide range of indoor/outdoor architectural, commercial, industrial, and residential lighting applications. KSHO-80W is available with or without integrated junction boxes on both the input and output side that have two knock outs each.

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
* Driver Type: Class 2 Class P
* Dimming: 10V PWM, 0/1-10V or Resistor Dimmable Available

* Full Dimming Range: 0-100%
* Waterproof ,for Dry , Damp, Wet Location.
* Wiring Compartments with Knock-Outs for Clean and Easy Installation

* With Detachable Junction Box
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* 5-Years Warranty
* UL/cUL Class2 CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.	KSHO-80W12	KSHO-80W24	KSHO-80W36	KSHO-80W48
Output Voltage	12V	24V	36V	48V
Rated Current	6.67A	3.33A	2.22A	1.67A
Rated Power	80W
Ripple & Noise (max.)	200mVp-p	250mVp-p	250mVp-p	250mVp-p
Dimension(LWH)	2975836mm / 11.72.291.46in

Show Details

Dimension Drawing

The HO series 0/1-10V PWM dimmable power supply use low profile metal aluminum case with or without junction box makes the dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lightings.

Company Profile

Working Room

Specification:

Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality

Exhibition

Hong Kong Exhibition in April 2024

Product packaging

1.Sample is available.

2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	50	0.26
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
1558535	455370175	14
