12V 20W Input 100-120V Constant Voltage IP20 LED Power Supply Driver for Indoor Strip Lighting Exceptional Efficiency

Lighting solutions service : Lighting and circuitry design, Project Installation

Application : LED Strip Light

Output Power : 20W

Input Voltage : 100-120V&200-240V

Output Voltage : 12V

color : White

Output Frequency : 50/60Hz

certification : UL cUL CE RoHS certified.

Output Current : 1.67A

warranty : 5 years

material : plastic shall

dimension : 153*50*20mm / 6.02*1.97*0.78in

Place of Origin : China (Mainland)

Brand Name : KSPOWER

Model Number : KSPUN-20W12

MOQ : 100 pieces

Price : $10.36/pieces 100-499 pieces

product name : 12V20W high pfc LED Driver

Protections : OCP, OVP, SCP, OTP

efficiency : >85%

Warranty(Year) : 5-Year

Output Type : Single Phase

Contact Now

12V 20W Input 100-120V Constant Voltage IP20 LED Power Supply Driver for Indoor Strip Lighting Exceptional Efficiency
Products Description
white 12V 20w input 100-120V Constant Voltage ip20 customs LED Power Supply Driver for Indoor LED Strip Lighting

The KSPOWER - PUN series high PF led driver 20 Watt is one constant voltage and non dimmable solution, rectangular plastic case design, single channel, accept AC input voltage range from 100-120V & 200-240V, and output voltage options: 12V, 24V, 36V, 48V. The led power transformer is one Class 2 power supply, great ideal for led strip lights and other low voltage devices such as led strip light, video gear cabinets light, Mr16, Mr11, G4 bulb and more. The class 2 led driver is small volume, with certification UL/cUL, CE, ROHS. The led dc transfromer is built-in intelligent chip-set, anti-thunder,with automatic thermal & overload cut-off, short circuit protection function.
12V 20W Input 100-120V Constant Voltage IP20 LED Power Supply Driver for Indoor Strip Lighting Exceptional Efficiency
Features:
* High PFC function to 0.92
* Single channel & CV power supply
* Low weight, rectangular plastic case
* Full Load Burn-in Test
* Use in Dry and Damp locations
* Safe with fully insulated connectors type: Screw Terminal.
* Easy to install, mount, and wire

Note:Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage
100-120Volts AC 60Hz & 200-240Volts AC 50Hz
NO.
KSPUN-20W12
KSPUN-20W24
KSPUN-20W36
KSPUN-20W48
Output Voltage
12V
24V
36V
48V
Rated Current
1666mA
830mA
555mA
416mA
Rated Power
20W
Ripple & Noise (max.)
200mVp-p
250mVp-p
250mVp-p
250mVp-p
Dimension(L*W*H)
153*50*20mm / 6.02*1.97*0.78in

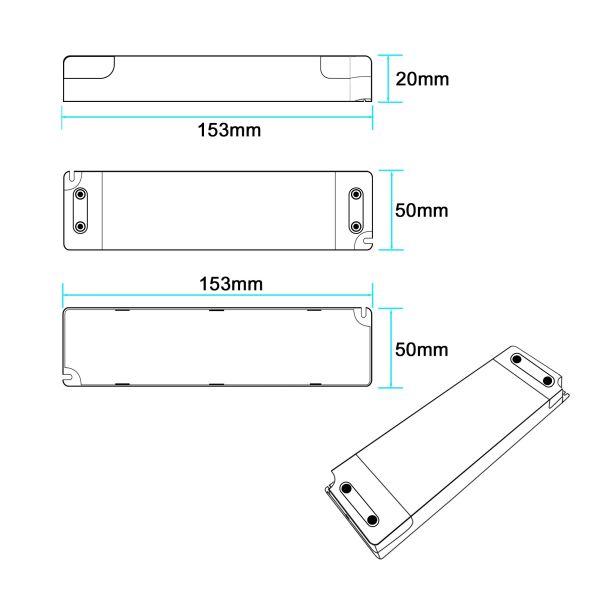

Dimension Drawing
12V 20W Input 100-120V Constant Voltage IP20 LED Power Supply Driver for Indoor Strip Lighting Exceptional Efficiency
Applications
The led driver is enough power to run one of LED strip, cabinet light etc. DC 12/24/36/48-volt single white color constant voltage and compatible with led strips.
12V 20W Input 100-120V Constant Voltage IP20 LED Power Supply Driver for Indoor Strip Lighting Exceptional Efficiency
12V 20W Input 100-120V Constant Voltage IP20 LED Power Supply Driver for Indoor Strip Lighting Exceptional Efficiency
12V 20W Input 100-120V Constant Voltage IP20 LED Power Supply Driver for Indoor Strip Lighting Exceptional Efficiency
Company Profile
Shenzhensshi Zhenhuan Electronic Co., Ltd and Shenzhen Keysun Technology Limited.
We’re an enterprise integrating industry and trade, which was founded in 2008, located in Shenzhen. Specializing in R&D, production and sales of AC DC adapter, Power Supply Units, LED driver and Li-ion battery charger, with more than 15 years of experience.

As a strength manufacturer, we have two factories in Shenzhen and Dongguan. We focus on finished product assembly and plug-in semi-finished product processing respectively. At present, we have more than 100 workers and a production area of 3,000 square meters.

We have our own brand--KSPOWER. Brand concept is “ Concentrate on doing one thing well and provide customers with a competitive and reliable products
